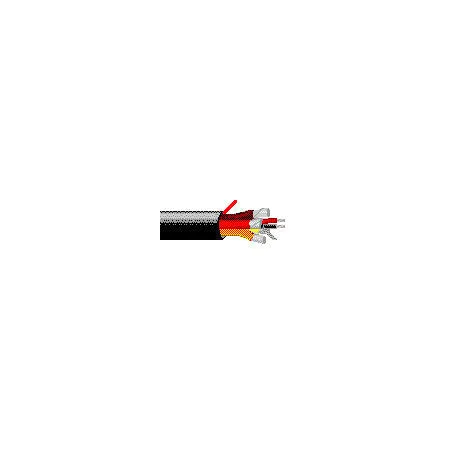

PHYSICAL CHARACTERISTICS:
- Number of Pairs 16
- Total Number of Conductors 32
- AWG 22
- Stranding 7x30
- Conductor Diameter .030 in.
- Conductor Material TC - Tinned Copper
INSULATION:
- Insulation Material Trade Name Datalene
- Insulation Material FHDPE - Foam High Density Polyethylene
- Nom. Insulation Wall Thickness .015 in.
- Insulation Diameter .060 in.
- Lay Length 1.75 in.
- Twists/ft. 6.85
- Pair Color Code Chart Red & Black
INNER SHIELD:
- Inner Shield Material Trade Name Beldfoil
- Inner Shield Type Tape
- Inner Shield Material Aluminum Foil-Polyester Tape
- Inner Shield % Coverage 100 %
- Inner Shield Drain Wire AWG 22
- Inner Shield Drain Wire Stranding 7x30
- Inner Shield Drain Wire Conductor Material TC - Tinned Copper
Inner Jacket
- Inner Jacket Material PVC - Polyvinyl Chloride
- Inner Jacket Nominal Wall Thickness .015 in.
- Inner Jacket Diameter .153 in.
CONDUCTOR:
